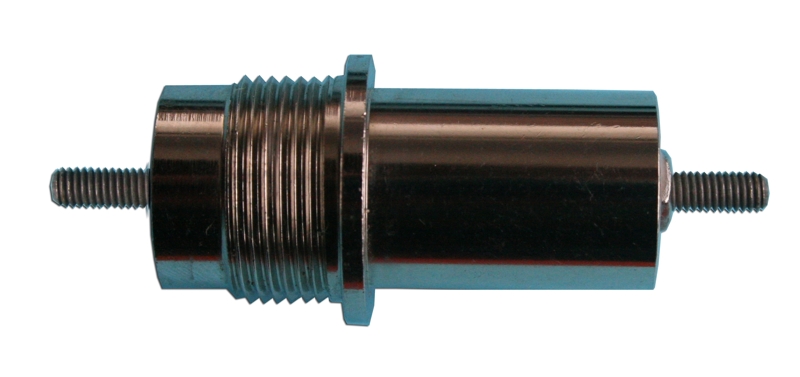

Feedthrough Capacitors 20A

General Details

MFD's range of 20A EMC feedthrough capacitors offer EMI suppression up into the GHZ range for high tech applications such as defence, telecoms, medical, railways, shielded rooms, IT and test equipment.



Technical Details
Capacitance Range 800nf - 12uF
Working Voltages 30 V DC - 400V DC
Dielectric Polypropylene
Tan Delta < 0.001 @ 1kHz
Insulation Resistance > 50,000 MΩ/uF @ 20oC
Environmental Classification 40/085/21

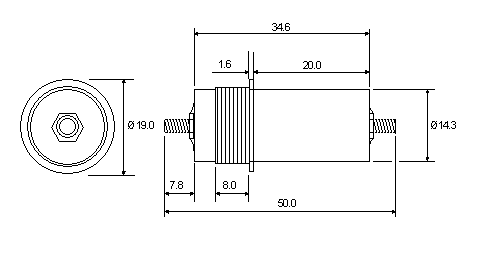

Mounting Thread M16 x 1.0
Case Material Nickel Plated Brass
